WARD 500

— Quality control
— The route and location in the exact time
— provides the provident basis in case of a dispute
— exercise the mental pressure to the intruder.

Категория: Метки: , , , , , , ,

Описание

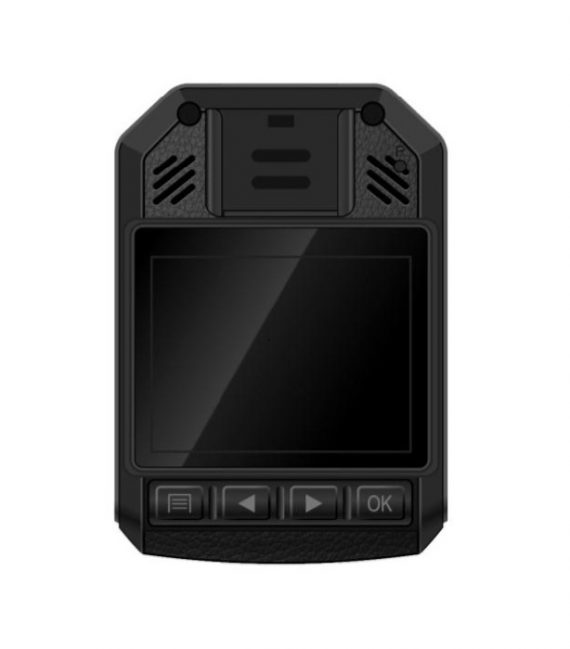

Personal DVR WARD 500 is intended to ensure the personal safety during the performance of professional duties.

The DVR provides the following functions:
— Quality control
— The route and location in the exact time
— provides the provident basis in case of a dispute
— exercise the mental pressure to the intruder.

Technical description:

Senor CMOS HD Sensor OV4689
Matrix size 1/4”
Matrix Resolution 4MP
Viewing angle 130°  horizontally
Infrared backlight sensitivity When the backlight is off — no more than 1 Lux. When the backlight is on — 0 Lux
Night mode Movable IR filter, IR illumination (automatic and manual switching), IR + LED illumination
Light range WDR
Standards NTSC, PAL
Identification Range Up to 10 meters to see facial features
Video resolution 1296p (3MP); 1080p (2MP); 720р (1 MP); 480р (0,4МP)
Write speed 2304×1296/30p 1920×1080/30p   1280×720/30p 1280×720/60p 848×480/30p
Time-lapse Arming mode — slow-motion recording no more than 1 frame / sec for recording continuous events
Prerecord mode Buffering 10 sec. before forced recording
Video format Н.264, MOV
Photo JPG, 24Мрх1,  taking pictures without interrupting the video recording
Multiple consecutive photos Support the number of consecutive shots: 3/6/8
Video segmentation 10 to 30 minutes no more than 10 min
Stamp Device ID、Police officer ID、Date and Time
Audio Built-in microphone, synchronous audio recording, built-in speaker (audio signals / voice status comments)
Loop recording The presence of automatic cyclic recording of information when filling the internal memory with the removal of the oldest segments of records. Protect important files from cyclic erasure
Internal memory Non-removable built-in memory card max support 128GB class 10
Power Recording time 2304*1296 30P : 660min,1920*1080 30P  700min, 1280*720 30P 740min, 848*480 30P  780min
Memory full Visual indicator, beep
Battery Built-in, rechargeable, high-capacity lithium-ion 2850m Ah lithium battery, charging time 4 hours, power adapter with USB cable, car charger included
Charge indication Diode and audible warning of low battery
Weight 110g
Mount clip for

Mounts on the lapel of clothes or on a pocket, rotates 360 °

Body Sealed shockproof body. Product serial number, the possibility of its removal or painting is excluded
Waterproof IP66
Temperature range From -20 ° С to + 60 ° С
Maximum humidity 85%
Interface Micro USB 2.0  charging and data streaming together
View On a Windows PC or using a terminal
Compatibility with Windows operating system
Software functionality To copy and view recorded information on a PC
Data protection data protection against unauthorized access
Auto save Automatically save current data before turning off the DVR or when the built-in battery is discharged
Use of terminal Compatible with terminals, docking stations.
Dimensions 77x53x25(mm)
